In the photolithography area light is used to transfer a geometric pattern from a photo mask to a light-sensitive chemical photoresist on the substrate.
 |

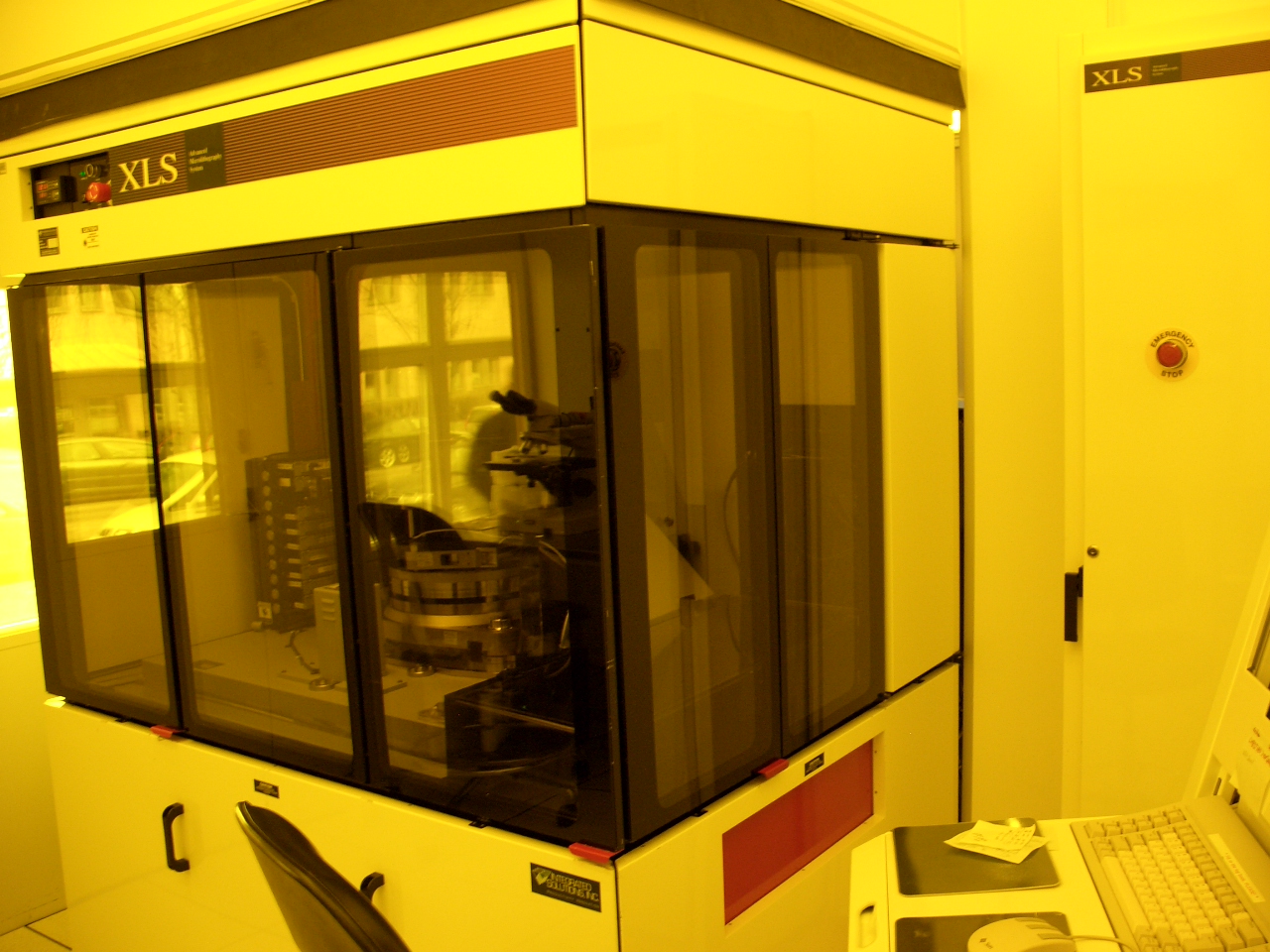

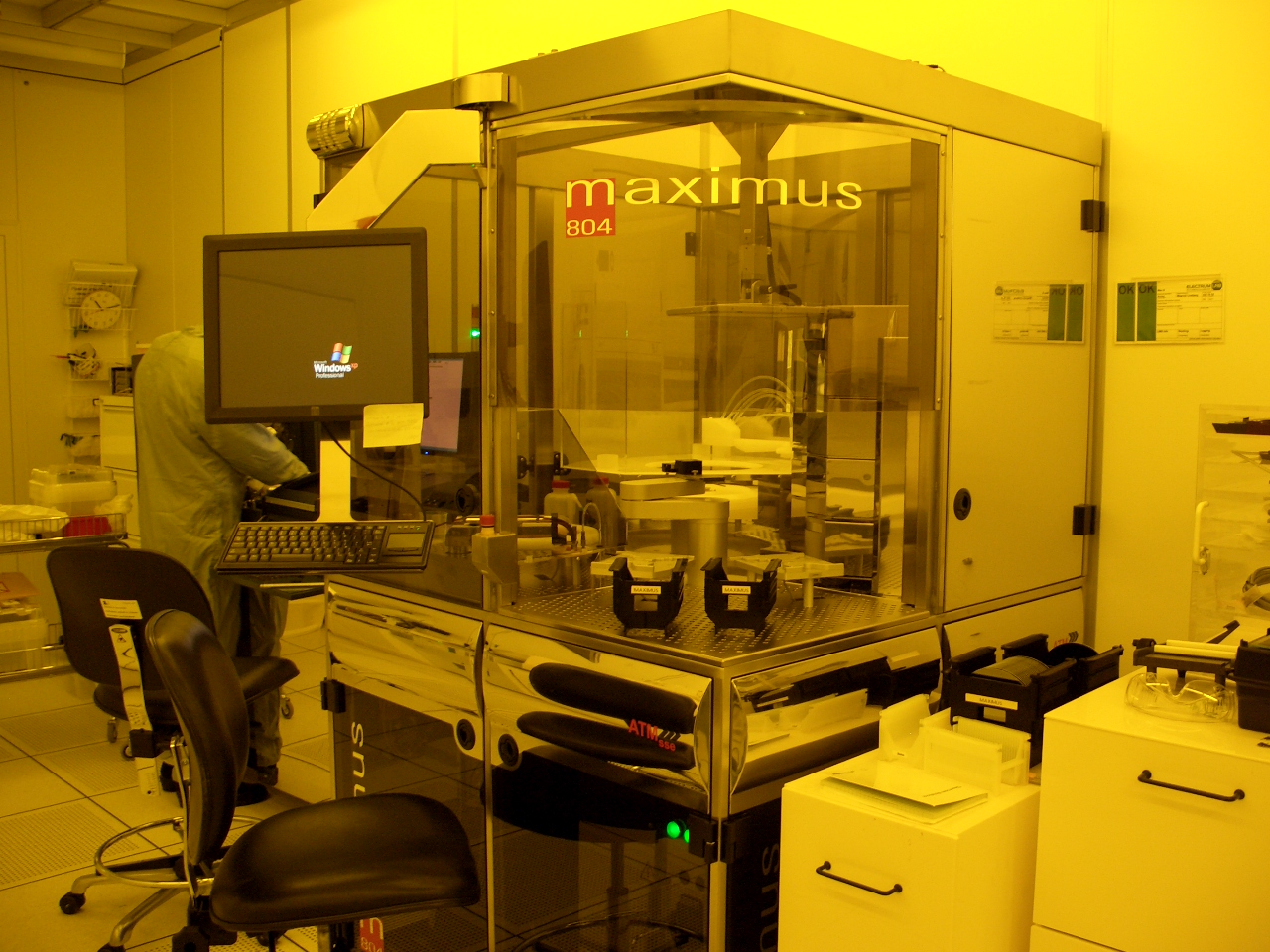

The wafer is covered with photo resist by spin coating (left) and

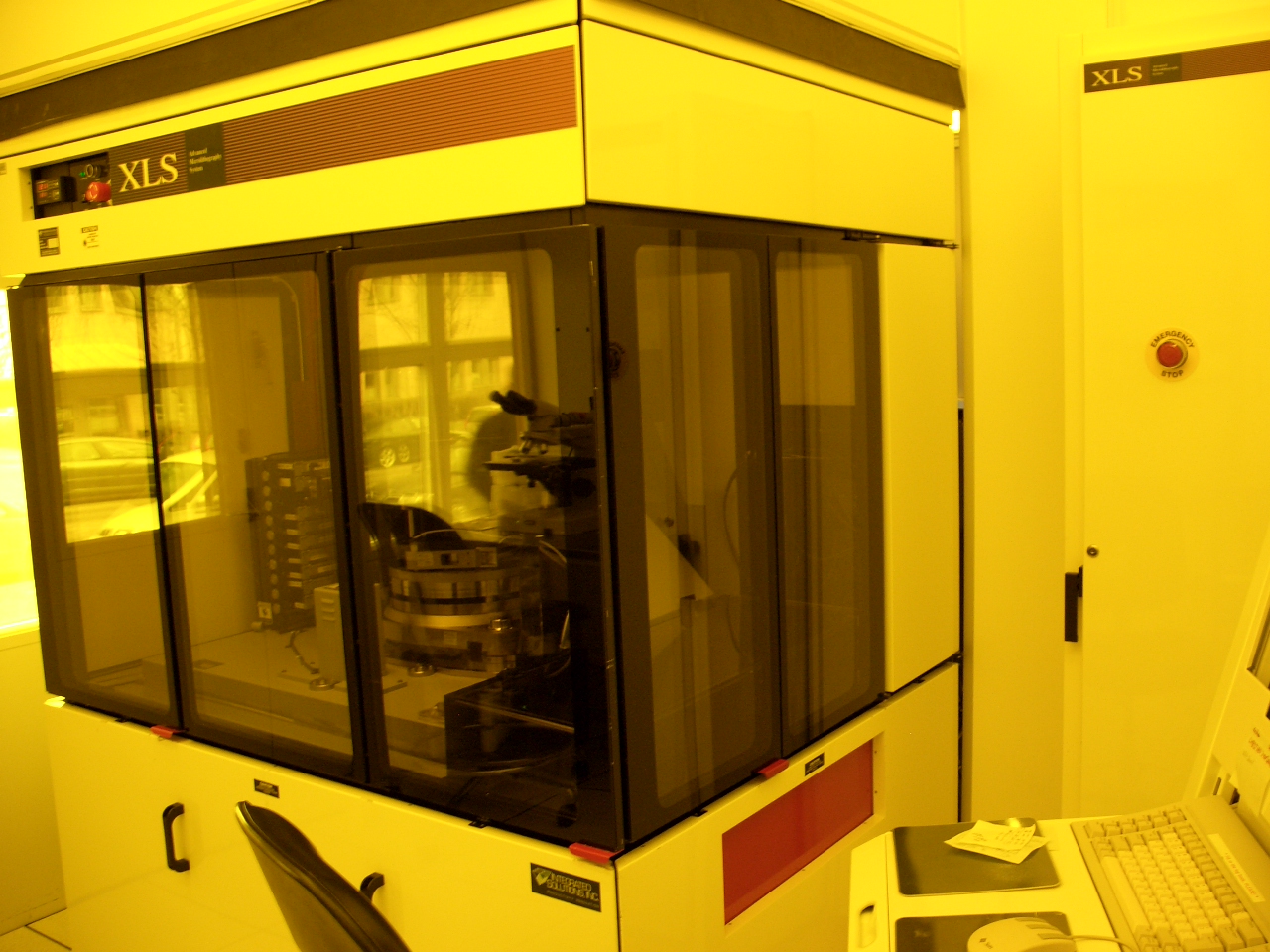

then exposed in a stepper using ultraviolet light.(right)
|
 |
