Gul 3

In the photolithography area light is used to transfer a geometric pattern from a photo mask to a light-sensitive chemical photoresist on the substrate.

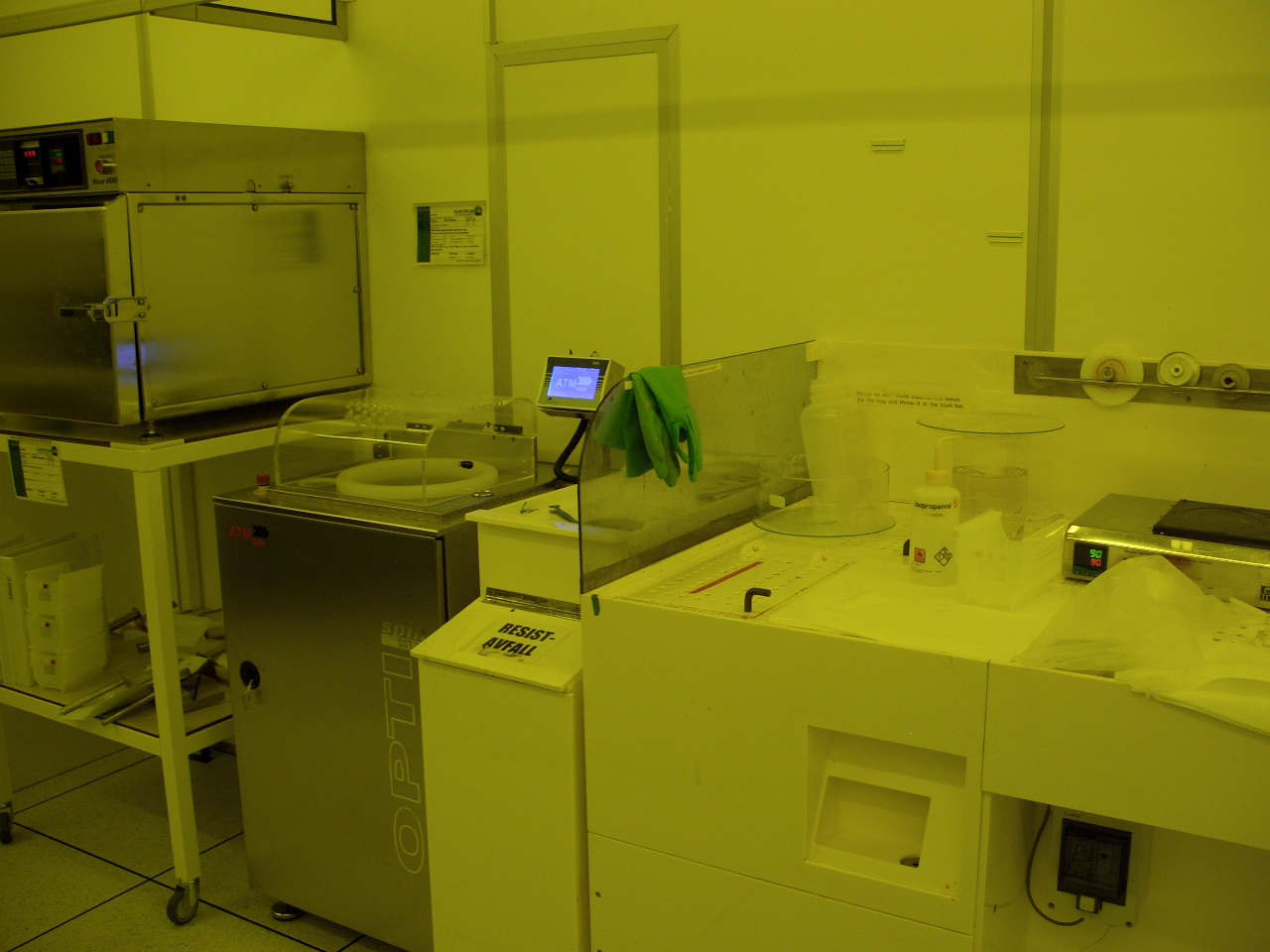

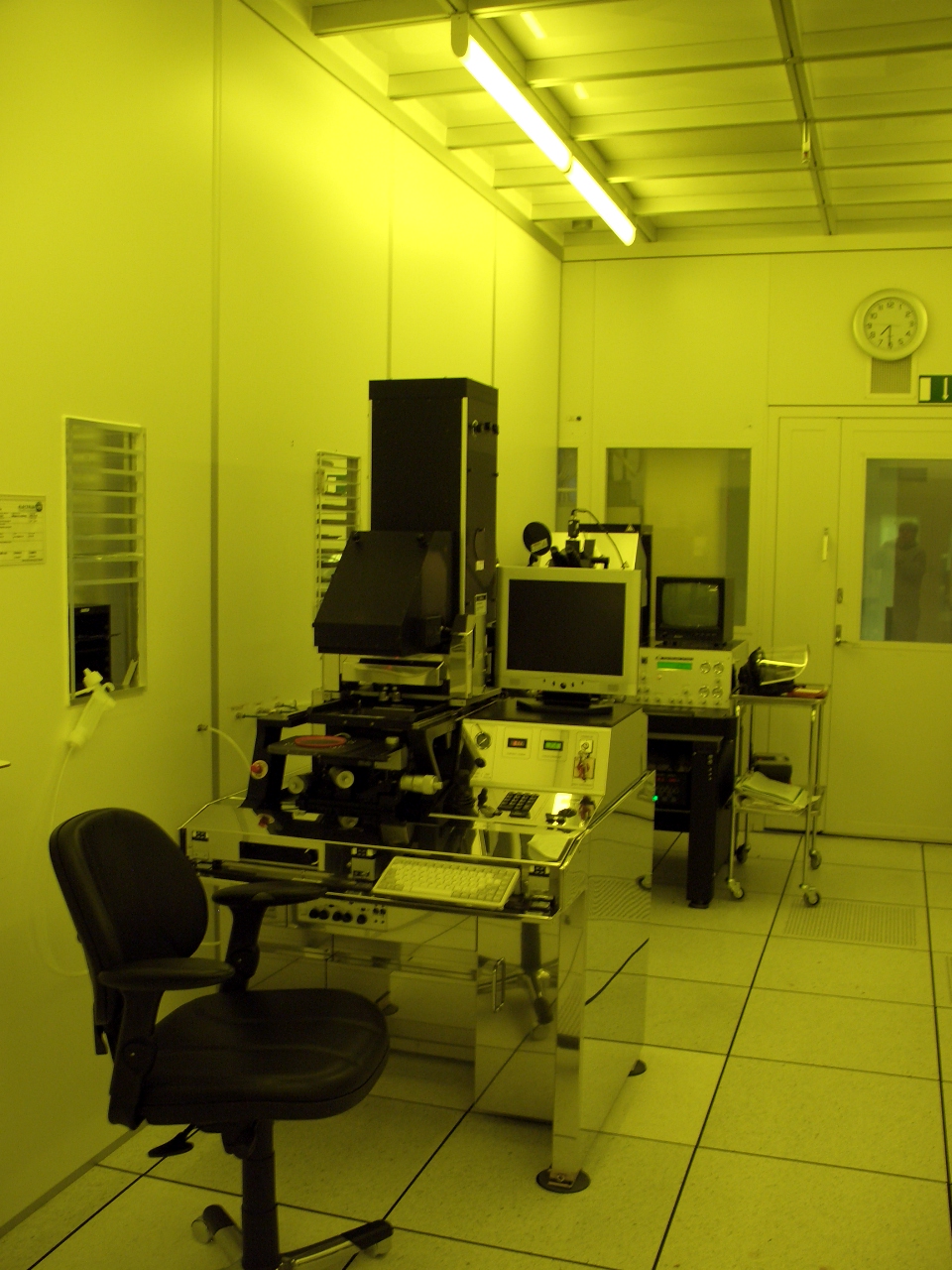

An EVG 620 UV Nanoimprint Lithography tool (left), mask aligner MA6/BA6 Karl Suss and a DSW g-line stepper is used for patterning the wafers. Coaters (right) are used to coat the wafers with photosensitive film.

All pictures can be viewed in larger format, just click on them.
